Substation Transformer

The Evenson Power Substation Transformer is the central voltage-conversion asset within an electrical substation, where it links transmission, sub-transmission, and distribution circuits. Operating on the principle of electromagnetic induction, it either raises voltage for efficient bulk transmission or lowers it for distribution to downstream feeders and customers. Because it sits at a critical node of the grid, reliability, efficiency, and long service life are non-negotiable design priorities.

Evenson Power engineers each substation transformer to the precise capacity, voltage class, and duty cycle of its installation, producing a unit that runs cool, regulates voltage tightly, and delivers decades of dependable service.

A substation transformer is a power transformer installed within a substation to perform step-up or step-down voltage transformation at relatively high capacities. Unlike small pole or pad units that serve individual customers, a substation transformer handles aggregated load for entire feeders, districts, or generating plants. It is a static device with no moving parts in its main energy path, transferring power between primary and secondary windings through a shared magnetic core.

These transformers are available in step-up configurations for generation and step-down configurations for distribution, and they form the backbone of both utility networks and large industrial power systems.

Designs are highly customizable. Customers can specify vector group, impedance, tap range, bushing arrangement, and cooling class to match grid requirements, and large units can be supplied skid-mounted for streamlined transport and installation.

• Low-loss grain-oriented silicon-steel core
• Copper or aluminum windings for high efficiency
• Robust steel tank with mineral or vegetable insulating oil

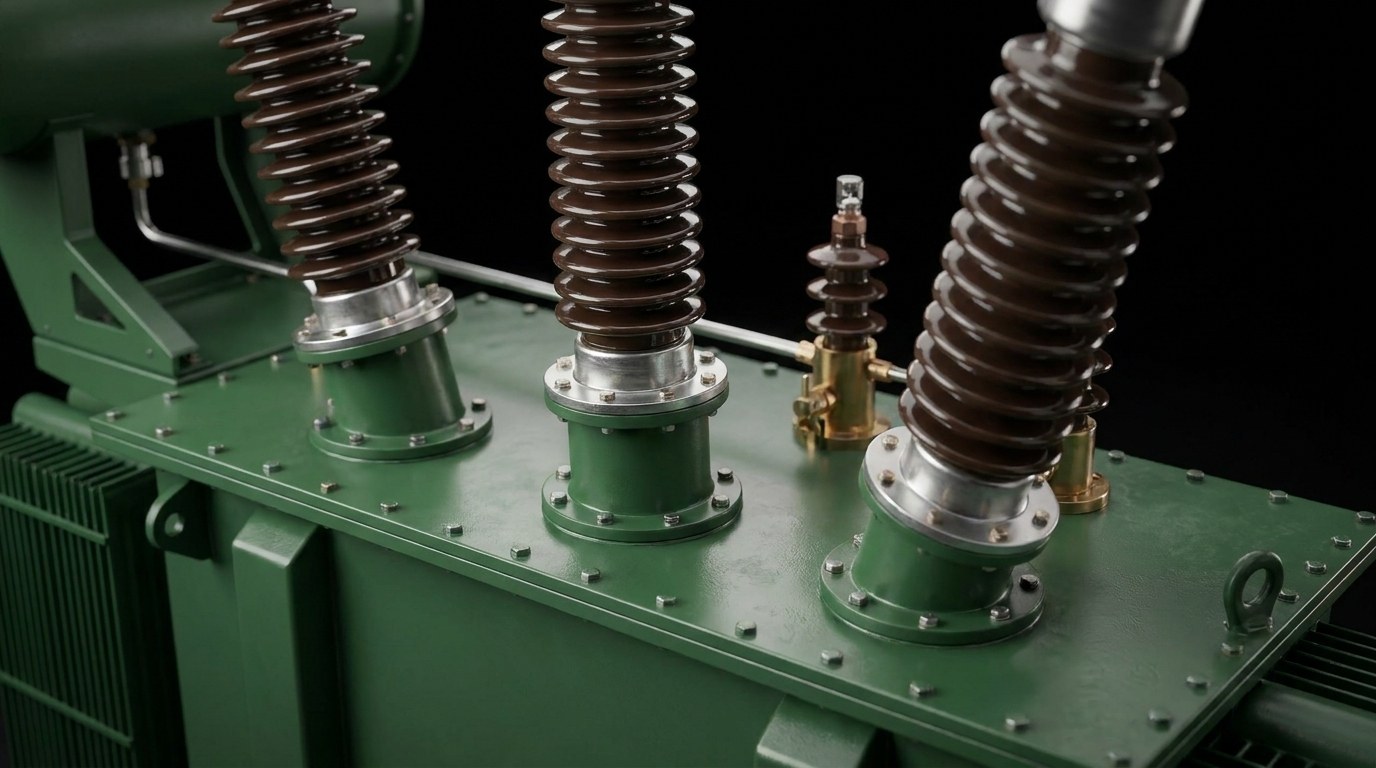

• Bushings, radiators, conservator/sealed system, and protection devices
• Customizable vector group, impedance, and cooling class

Evenson Power substation transformers span a wide capacity range, from compact units of around 50 kVA up to large power transformers of 10,000 kVA and well beyond, with example ratings such as 2,500 kVA, 4,000 kVA, 25 MVA, and 50 MVA produced for utility and industrial service. Voltage classes extend from 35 kV and below for distribution-substation duty up to high- and extra-high-voltage classes including 110 kV, 220 kV, 330 kV, 400 kV, 500 kV, and 750 kV for transmission applications.

Each transformer is wound to the exact primary and secondary voltages, impedance, and regulation requirements of its site, ensuring tight coordination with the surrounding network.

• High efficiency with low no-load and load losses
• Available with on-load (OLTC) or no-load (NLTC) tap changers

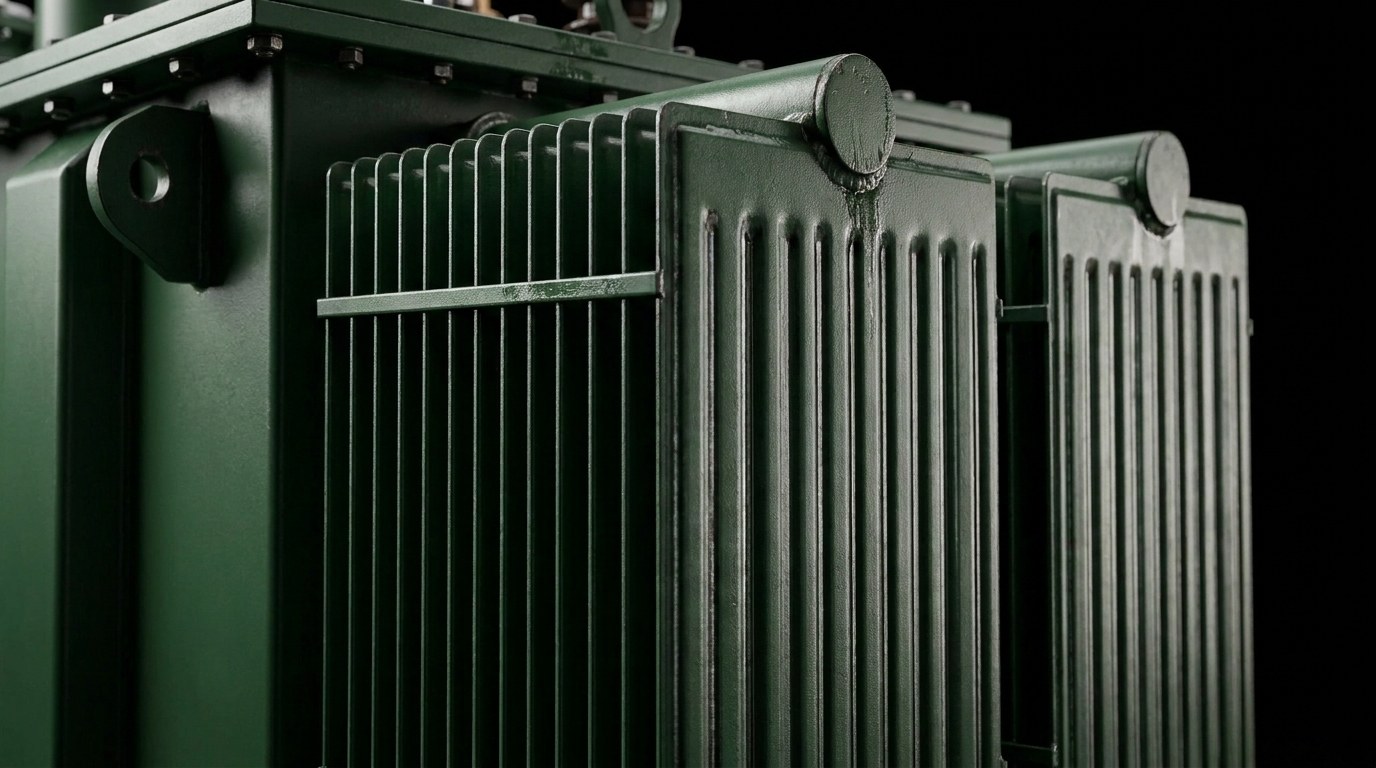

• Flexible cooling: natural air, forced air, natural oil, forced oil, water-cooled
• Step-up and step-down configurations
• Strong short-circuit and overload withstand
• Long service life of 30 to 50 years with proper maintenance

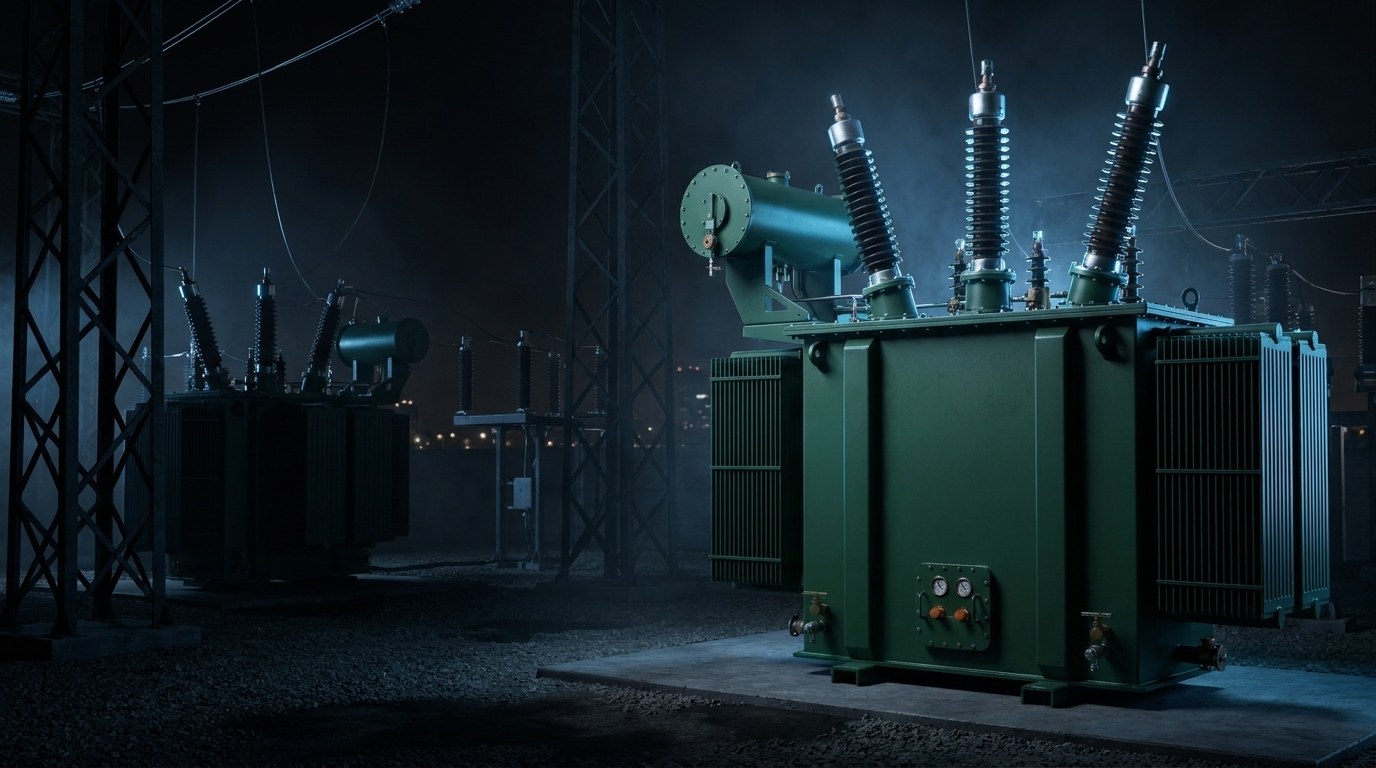

Substation transformers are deployed at every level of the power system where bulk voltage transformation is required. In utility transmission and distribution substations they interconnect voltage levels and feed regional distribution networks. In generation, step-up units raise generator output to transmission voltage for efficient long-distance transport.

Large industrial facilities, mines, refineries, and process plants use substation transformers to take in utility-level supply and condition it for plant distribution, while renewable plants employ them as main step-up transformers connecting solar, wind, and storage output to the grid.

• Utility transmission and distribution substations
• Generation step-up at conventional and renewable plants
• Heavy industry, mining, and process facilities
• Grid interconnection and voltage-level tie points

Evenson Power substation transformers are designed, manufactured, and tested in accordance with leading international and North American standards, including IEC, IEEE, ANSI, NEMA, CSA, UL, CE, and DOE efficiency requirements. Routine factory tests cover turns ratio, winding resistance, insulation resistance, dielectric and induced-voltage withstand, no-load and load losses, and impedance.

Type tests such as temperature rise and lightning-impulse withstand, along with special tests, are available to satisfy demanding qualification programs, and each unit ships with full test documentation.

Substation transformers are installed on engineered foundations or pads with appropriate clearances, oil-containment provisions, and grounding. After placement, the unit is filled or topped with insulating oil where applicable, bushings and cooling equipment are connected, and a full commissioning test sequence is performed before energization.

Ongoing maintenance focuses on preserving insulation health and cooling performance. Evenson Power recommends regular oil sampling and dissolved-gas analysis, periodic inspection of bushings, tap changers, and cooling systems, thermographic surveys, and verification of protection devices. With disciplined maintenance, these transformers reliably reach service lives of 30 to 50 years.

• Mount on engineered foundation with oil containment and grounding
• Fill/top oil, connect bushings and coolers, commission before energizing
• Perform routine oil sampling and dissolved-gas analysis
• Inspect tap changer, bushings, and cooling system periodically

Evenson Power delivers substation transformers engineered for the realities of modern grids: rising load, renewable integration, and the demand for ever-higher efficiency. Every unit is purpose-built to its application, rigorously factory-tested, and supported by experienced engineering and aftermarket teams. Choosing Evenson Power means investing in a long-life, high-efficiency asset that keeps critical power flowing reliably for decades.

Every Evenson Power substation transformer undergoes a comprehensive routine, type, and special test regime before it leaves the works. Routine tests cover winding resistance, voltage ratio across all tap positions, vector group verification, no-load and load losses, impedance voltage, and applied and induced overvoltage withstand. Each unit is also subjected to insulation power-factor and capacitance measurement to confirm the dielectric integrity of the active part prior to oil filling and final assembly.

For units rated up to 230kV, Evenson Power performs full lightning impulse and switching impulse tests to validate the insulation coordination of the windings and bushings. Partial discharge measurement is carried out during the induced voltage test, with acceptance limits held well inside the thresholds defined by IEC 60076. Dissolved gas analysis baselines and ratio temperature-rise heat-run tests confirm thermal performance under rated load before dispatch.

Test certificates, calibration records, and a complete factory acceptance test (FAT) report accompany every transformer. Clients are welcome to witness testing on site or remotely, and Evenson Power can align its protocols with utility-specific or third-party inspection requirements on request.

• Routine, type, and special tests per IEC 60076
• Lightning and switching impulse withstand verification
• Partial discharge measurement during induced voltage test
• Full heat-run temperature-rise test and DGA baseline
• Witnessed FAT with complete documentation package

Evenson Power supplies each substation transformer with detailed transport, handling, and erection drawings to support safe site logistics. Large units are shipped with the active part under positive nitrogen pressure or oil-filled depending on transport constraints, and impact recorders are fitted to verify that shock limits are not exceeded in transit. Lifting lugs, jacking pads, and haulage points are clearly identified to simplify offloading and positioning on the foundation.

On site, commissioning follows a structured sequence: mechanical inspection, oil filling and processing under vacuum where applicable, accessory mounting, and electrical pre-energization checks. Insulation resistance, turns ratio, winding resistance, and oil dielectric strength are re-verified to confirm the unit arrived in sound condition. Protection devices, including Buchholz, pressure relief, and winding temperature indicators, are functionally tested before the transformer is energized.

Evenson Power can dispatch field service engineers to supervise installation, perform oil treatment, and lead the energization and load-test sequence, ensuring the transformer enters service with full confidence and a documented commissioning record.
