Evenson Power electric wire covers the building, fixture, and flexible connection needs of homes, businesses, and equipment.
Electric wire is the everyday workhorse of electrical installations, carrying current within buildings, panels, fixtures, and equipment. Evenson Power manufactures a comprehensive range of single-core building wires and flexible cords engineered for safety, durability, and easy installation.
From the fixed wiring concealed in walls and conduits to the flexible cords that connect appliances and machinery, Evenson Power electric wire is built with high-purity copper conductors and carefully formulated insulation to meet the electrical and mechanical demands of modern installations.

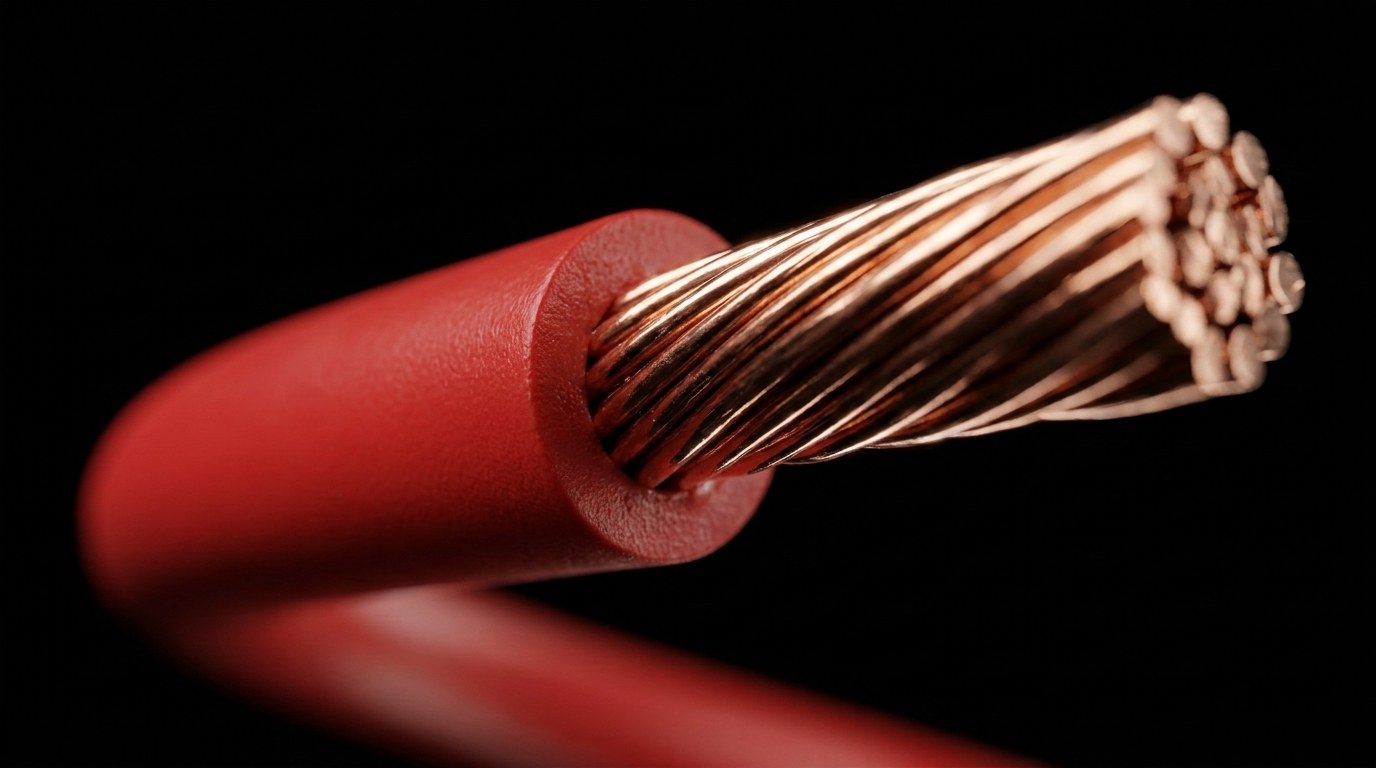

Electric wire generally refers to a single insulated conductor, or a flexible multi-strand cord, used for the wiring of buildings, control panels, lighting, and appliances. Unlike heavy power cables, electric wire is optimized for routing within conduits, trunking, and equipment, where flexibility, insulation quality, and ease of termination matter most. It is the most widely used cable product in any installation, present in every circuit from the main panel to the smallest light fitting.
Evenson Power offers both rigid building wire with solid or stranded copper conductors and highly flexible cords built from fine-wire bundles, covering everything from final-circuit wiring to appliance connections and internal panel wiring. By producing the full spectrum of conductor classes and insulation types, Evenson Power lets electricians and panel builders source every wire they need, in every color and rating, from a single dependable brand.

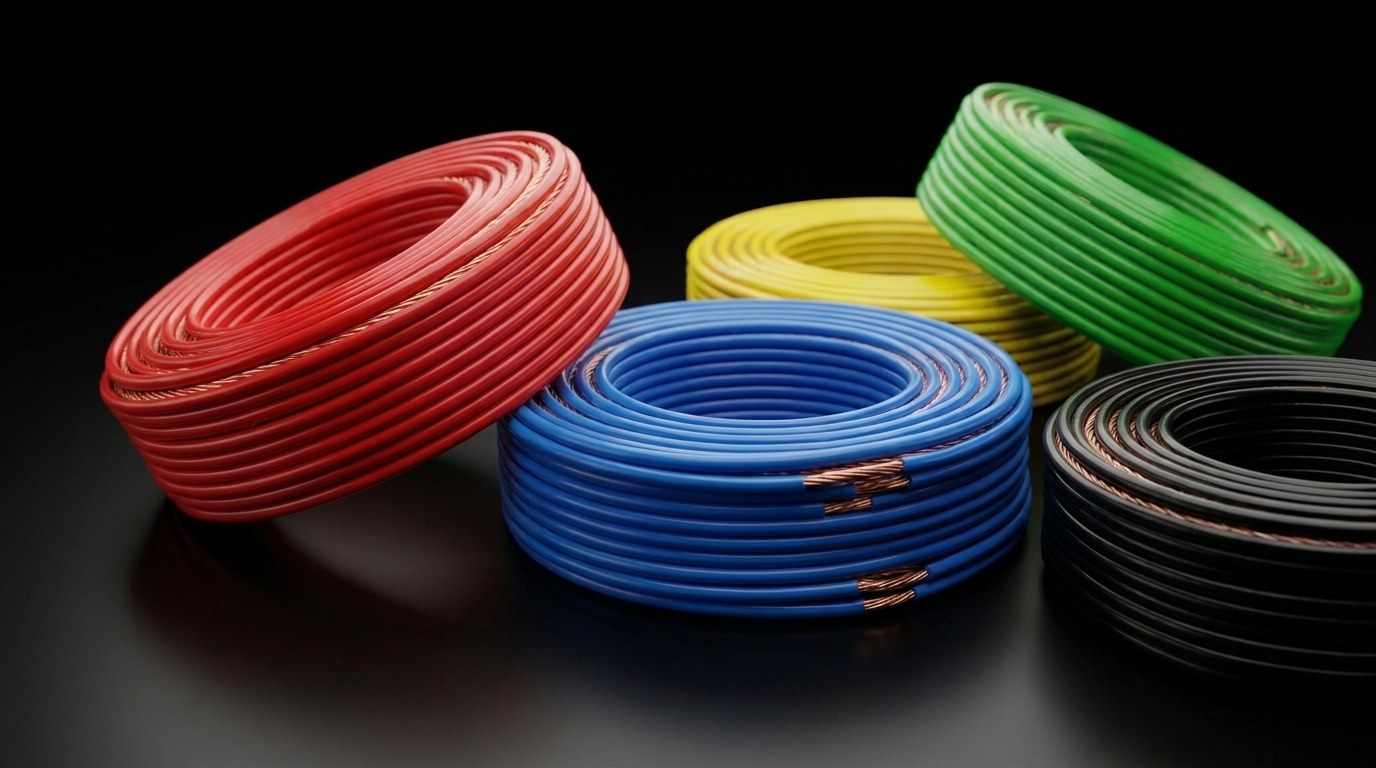

Evenson Power electric wire is built around annealed high-conductivity copper conductors, available as solid wire for fixed wiring or as fine-stranded flexible classes for cords and panel wiring. The copper is drawn and annealed to ensure low resistance and excellent flexibility.
Insulation is extruded directly over the conductor in PVC for general-purpose wiring or in low-smoke zero-halogen (LSZH) compound where fire safety is critical. Color-coded insulation supports easy identification and code compliance, and flexible cords add an outer PVC or LSZH sheath where required for mechanical protection.
Evenson Power electric wire is rated for the low-voltage circuits found throughout buildings and equipment, with reference designs covering the common 300/300 V, 300/500 V, and 450/750 V ratings. Conductor sizes span the fine sections used in lighting and electronics through the larger sizes used for sub-circuits and feeders.
Standardized harmonized types such as H05V-K, H07V-K, H03VV-F, and H05VV-F are produced for flexible and building wiring, giving designers familiar, interchangeable references.
Evenson Power electric wire is engineered for safe, reliable, long-term service in fixed and flexible applications alike. High-purity copper keeps resistance and heating low, which improves energy efficiency and allows the wire to run cool at its rated load, while carefully selected insulation resists heat, abrasion, and ageing across many years of service.
LSZH options protect life and equipment in fire conditions by emitting minimal smoke and no corrosive halogen gases, a critical advantage in occupied buildings, transit systems, and data centers where evacuation visibility and equipment survival matter. Consistent insulation thickness and reliable color-coding speed up installation and inspection, helping projects pass first time and stay compliant with local wiring codes.

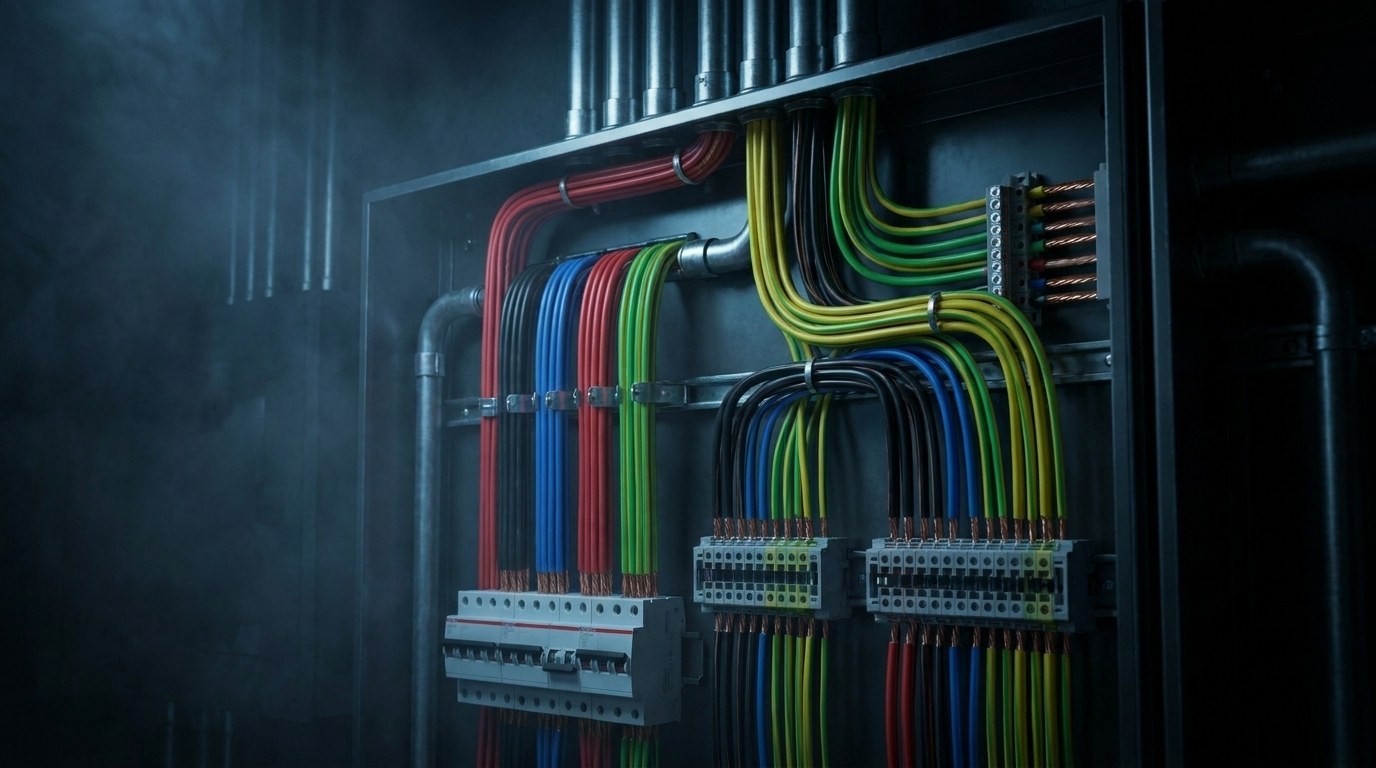

Evenson Power electric wire is used wherever circuits are wired and equipment is connected. Building wire serves the fixed wiring of homes, offices, and commercial premises in conduit and trunking. Flexible cords connect appliances, power tools, lighting fixtures, and machinery, while fine flexible wire handles internal panel and control wiring.
Evenson Power electric wire is manufactured and tested to internationally recognized standards governing conductor resistance, insulation thickness and quality, voltage withstand, and flame performance. Every design is verified for safe operation across its rated temperature and voltage.
Compliance follows IEC, BS, UL, and harmonized (HD) frameworks appropriate to the wire type, ensuring confidence and interchangeability in any installation.
Electric wire is installed by pulling into conduit, trunking, or equipment, observing fill, bend, and temperature limits to protect the insulation. Evenson Power wire is supplied in clearly marked coils and reels for easy dispensing and length control.
Correct termination, the use of appropriate ferrules or lugs on stranded conductors, and adherence to local wiring codes ensure a safe and durable installation. Color-coding should be respected throughout for safety and compliance.
Evenson Power electric wire pairs premium copper conductors with high-quality, carefully formulated insulation to deliver wire that installers trust and inspectors approve. Tight process control and consistent color-coding make every coil dependable and code-ready.
With building wire, flexible cords, and LSZH safety options available from one brand, Evenson Power is the reliable choice for wiring projects of every size, backed by consistent quality and global-standard compliance.
Evenson Power building wire is produced from high-conductivity electrolytic copper drawn and annealed to deliver consistent, low-resistance conductors. Throughout manufacture the conductor diameter and resistance are monitored, and the PVC insulation is extruded to a controlled wall thickness and continuously spark-tested to detect any pinholes or voids before the wire is spooled.
Each production lot is sampled for conductor resistance, insulation thickness and tensile properties, insulation resistance, and high-voltage withstand. The PVC compound is verified for flame-retardant behaviour, heat resistance, and ageing performance so that the finished wire reliably meets its temperature rating in service. Colour coding and surface printing of size, voltage rating, and standard markings are checked for legibility and durability.
Test reports are available on request, and every reel is labelled with conductor size, insulation type, length, and batch number to give installers and inspectors complete traceability.
Evenson Power single-core PVC-insulated copper building wire is designed for general-purpose wiring in conduit, trunking, and enclosed raceways within residential, commercial, and industrial installations. Its flexible stranded or solid conductor and tough, abrasion-resistant insulation make it easy to pull through conduit runs while resisting nicks and damage during installation, and the heat-resistant rating allows it to be loaded to its full ampacity in typical building environments.
A comprehensive range of conductor sizes and standard insulation colours supports clear circuit identification and code-compliant phase, neutral, and earth wiring. The insulation is formulated to resist moisture, common oils, and chemicals encountered in building services, and to remain flexible across a wide ambient temperature range so that terminations stay sound over the life of the installation.
Supplied on reels and in coils sized for convenient handling, the wire is suited to lighting, power, and control circuits throughout the built environment.
| Conductor material | Annealed electrolytic copper (Cu) |
| Conductor class | IEC 60228 Class 1, 2, 5, 6 (solid to fine-flexible) |
| Insulation | PVC or low-smoke zero-halogen (LSZH) |
| Voltage rating | 300/300 V, 300/500 V, 450/750 V |
| Conductor sizes | 0.5–95 mm² (≈20 AWG–4/0) |
| Number of cores | Single-core; flexible multi-core cords |
| Harmonized types | H05V-K, H07V-K, H03VV-F, H05VV-F, H05Z-K, H07Z-K |
| Sheath (cords) | PVC or LSZH outer sheath (where applicable) |
| Temperature rating | 70°C (PVC) / up to 90°C (special grades) |
| Color coding | Full range incl. green/yellow earth |
| Flame performance | Flame-retardant; LSZH low-smoke options |
| Flexibility | Solid (fixed) to highly flexible (cords) |
| Application | Building wiring, fixtures, appliances, panels |
| Standards | IEC 60227/60228, BS 6004, BS EN 50525, UL 83/758 |
| Tests | Resistance, insulation, HV withstand, flame |
| Packaging | Marked coils and reels |
Engineered, certified and delivered under the Evenson Power name.
